How to Install Bathtub Feet for Clawfoot Tubs?

This article is a general installation guide for Clawfoot tubs' feet

PLEASE REFER TO THE MANUFACTURER'S INSTRUCTIONS FOR MOST ACCURATE INFORMATION.

You may also contact our technical support for additional questions and information.

[e-mail]

YouTube Channel Video: How to Install Bathtub Feet for Clawfoot tubs

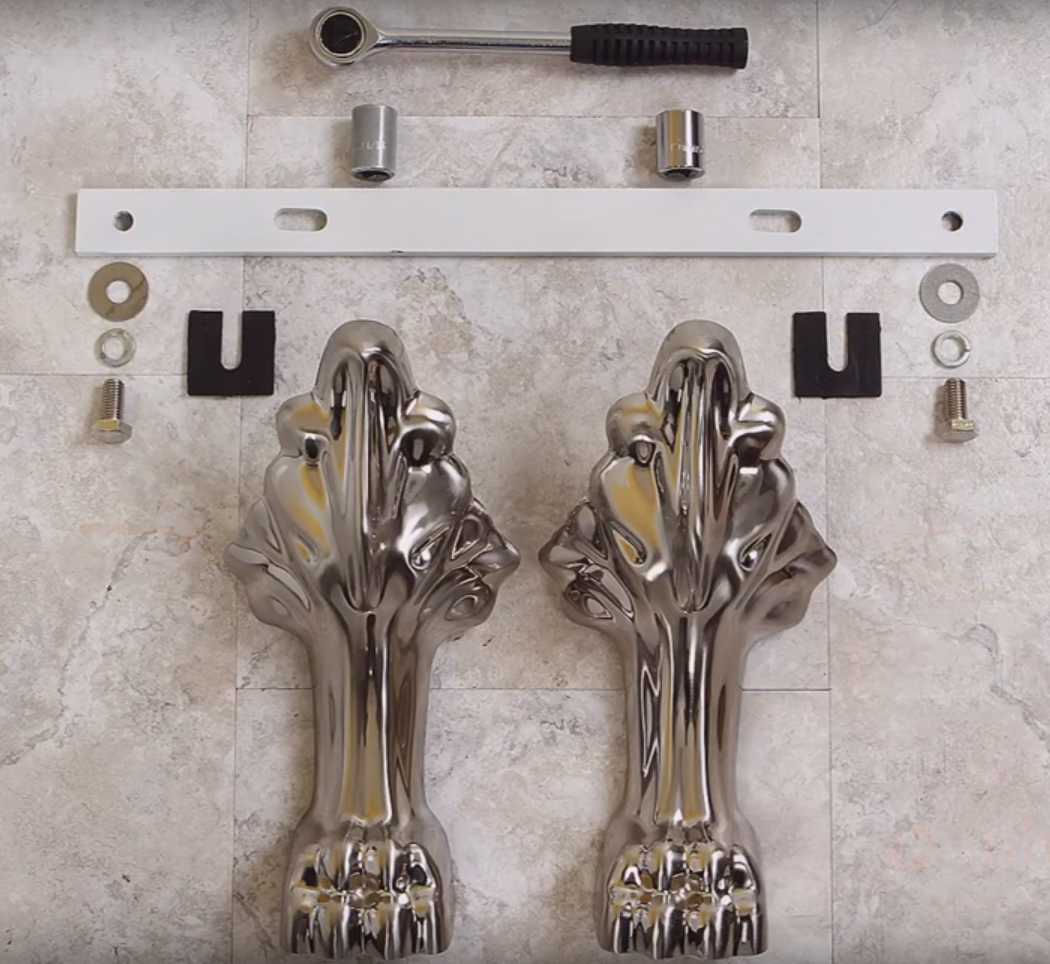

1. Before beginning the installation, make sure all the required parts and tools are ready and available.


2. Remove the rubber sleeves from the bolts.
3. Loosen then remove the nuts and washers.
4. Carefully place then centers the leg frame.
5. Replace washers and bolts and hand tighten for now.
6. Insert the bolt with the washer and hand-tighten a full turn.
7. Lift the washers and slip the foot in until flush with the tub
8. Inset the rubber shim between the leg frame and foot and tighten the bolt with a 9mm socket wrench.
9. if necessary adjust the leg frame so that the feet are equally flush on both sides.
10. Loosen the buts and carefully lift the arm and adjust to the appropriate side.
11. Tighten nuts on leg frame with an 11/16 socket wrench.
12. Thread the adjustment bolt onto the foot.
13. Repeat steps 4-8 and 11 to install the other foot and step 1-11 to complete the installation on both sides.
14. Lastly, you may adjust the adjustment bolts to level the tub if the tub is unbalanced.
